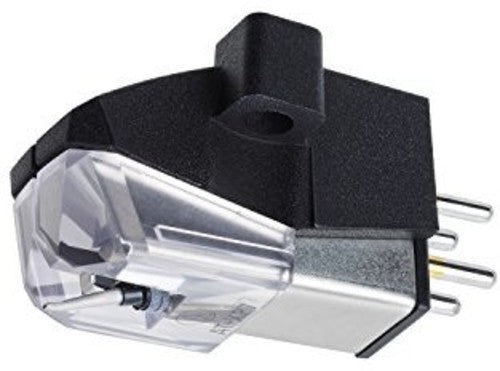

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Frequency Response: 20-18,000 Hz
Channel Separation: 22 (dB at 1 kHz)
Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Output: 6.0 mV (1 kHz, 5 cm/sec.)
Channel Balance: 2.0 dB (1 kHz)
Stylus Shape: 0.3 x 0.7 mil elliptical
Cantilever: Aluminum tapered pipe
Mount: Half-inch
Replacement Stylus: ATN-XP7
Coil impedance: 6.7 k ohms (1 kHz)
DC resistance: 990 ohms
